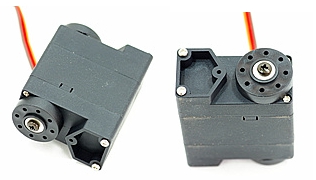

RB-1188

RB-1188 Rev.2

Motor type

Ferrite brush motor

Coreless Motor

Type of Gear

Metal  gear

     Operating

 Voltage

4.8 V ~ 7.4 V

Neutral pulse

1.5 ㎳(Adjustabla)

Travel angle

 180 °

Dead Band

1 ~ 2 ㎲ (Adjustable)

Speed

(sec/60°at 6.0V)

0.22

0.1

(sec/60°at 7.4V)

0.2

0.08

Torque

(kg/cm at 6.0V)

7.5

18

(kg/cm at 7.4V)

9.5

20

Weight (g)

59

59

Dimensions (mm)

40 x 20 x 50 mm

Ball bearing

Basic(2BB)
